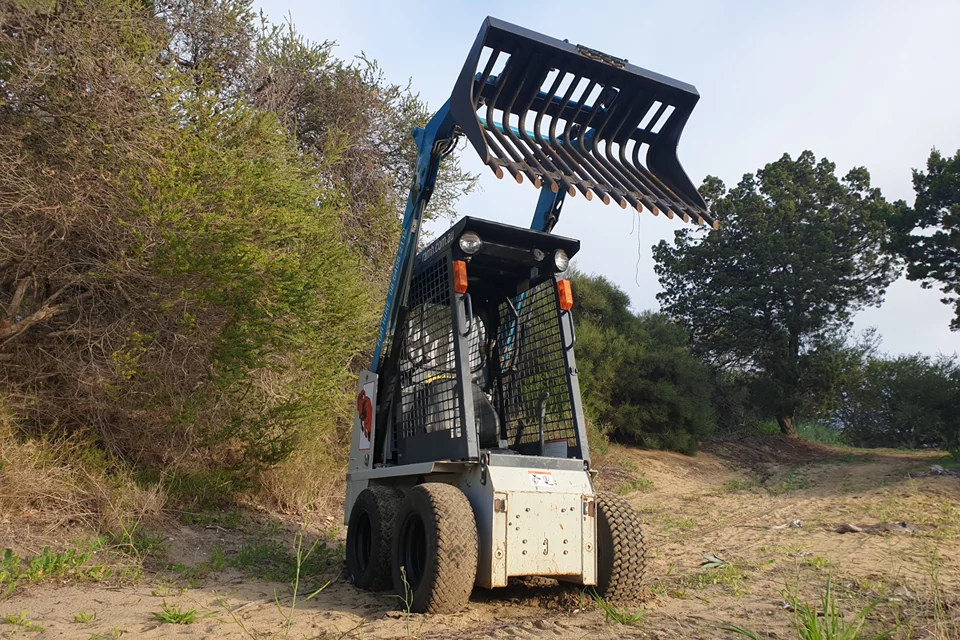

Skid steer with rake bucket

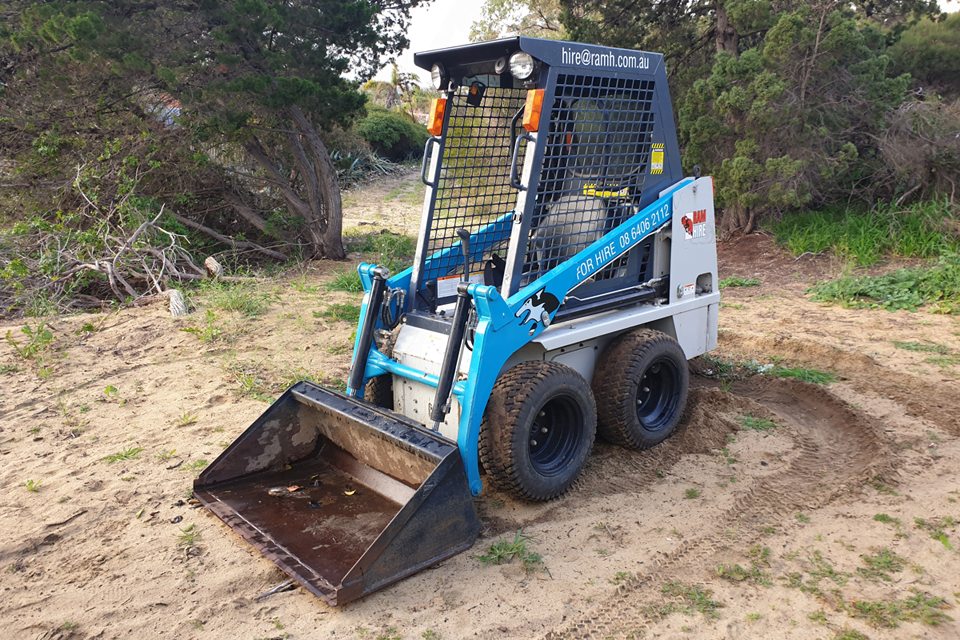

Skid steer with gp bucket

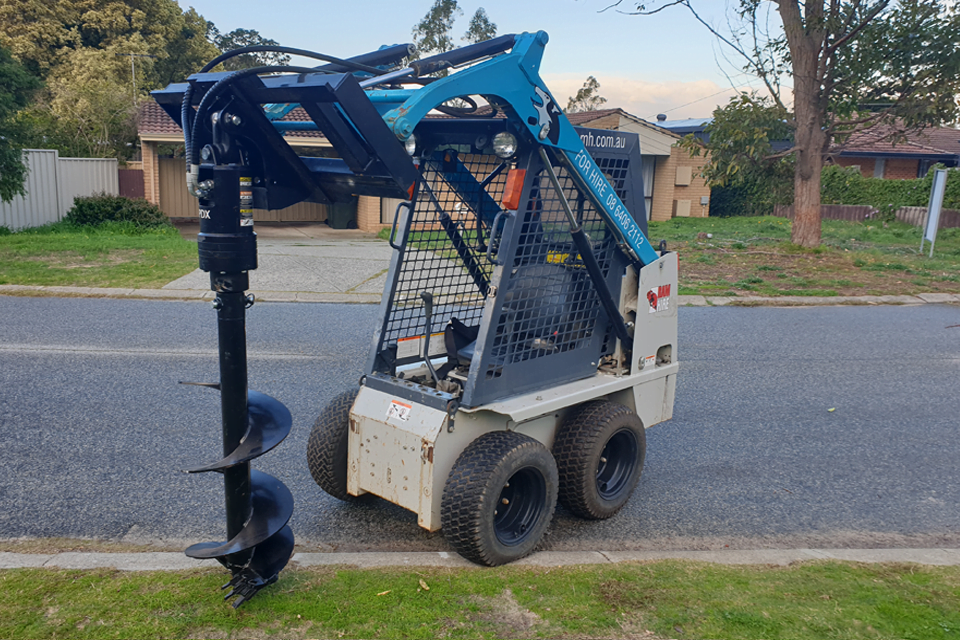

Skid steer with auger attachment

In Perth, all skid steers are known ubiquitously as bobcats, despite bobcat being the brand name of one of the many manufacturers.

At 920mm and 1070mm our tiny 1.2t mini bobcat’s are available for wet and dry hire, meaning with or without an operator. All you need is a valid photo ID.

Dry Hire – Either pick up from our location NOR 6025, or book delivery to site at a competitive rate.

Wet Hire – All operators are qualified, experienced and insured and will work under your direction.

Measurements

Widthmm920 / 1070
Heightmm1825
Dump Height (dump angle 38°)mm1835
Reach Fully Raised (dump angle 38°)mm430

Performance

Tipping Load (SAE)kg640
Operating Load (SAE)kg320
Ground Clearance (centre)mm180
Machine Weight (with fuel and gp bucket)kg1200
Dump Angle (max.)deg38
Raising Time (full load)sec3.5
Lowering Time (no load)sec2.3
Dump Timesec2.3
Travel SpeedForwardkm/hr9.0
Reversekm/hr9.0
Clearance Circle (with bucket)mm1420
GradeabilityForward%31
Reverse%58

Engine

ModelYanmar 3TNV70
Fuel Capacity (litres)Diesel25
Piston Displacementcc13.7/3000
Rated Power / r.p.m.kW1835
Rated Torque / r.p.m.Nm430

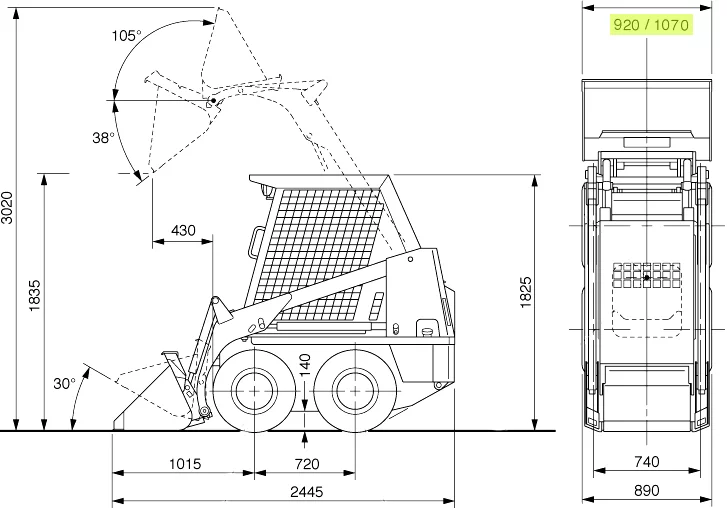

SDK4 bobcat measurements
    Skid Steer
  • •   $185.00 +gst, 24hr hire.
  • •   Tow braked trailer and machine with any diesel vehicle (GTM 2100kg).
  • •   Pickup NOR 6025. Address provided on booking.
  • •   Plant trailer fitted with onboard brake controller (990kg).
    Bobcat Delivery
  • •   Up to 40km from 6025: $75.00.
  • •   45km - 85km: $75.00 each way.
  • •   +85km by arrangement.
  • •   Pricing excludes gst.

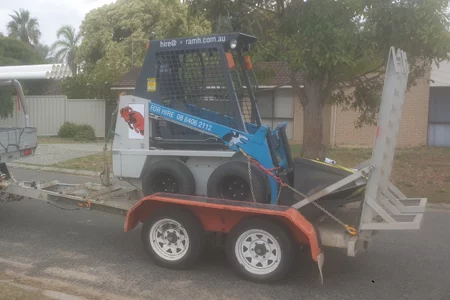

Skid steer on trailer
Pick Up
Located in Perths northern suburbs, pick up for $185.00 plus GST for 24 hrs.
Delivery
We can deliver the bobcat to you - Yanchep to Baldivas.
With Operator
Hire the bobcat with an operator for $75.00 per hour, plus GST. Minimum 3 hr hire (2hrs working, 1hr travel).
Buckets
920mm gp bucket, 1070mm gp + rake bucket. Auger and block lifter available.
    Skid Steer + Operator
  • •   Minimum hire 3hrs (1hr travel, 2hrs working).
  • •   Hourly rate $75.00 +gst
  • •   Experienced operators only.
  • •   Under your instruction.
    Reliable and Safe
  • •   All operators have whitecard's and machine ticket.
  • •   Operators are covered by public liability insurance.
  • •   Reliability and communication is a top priority.

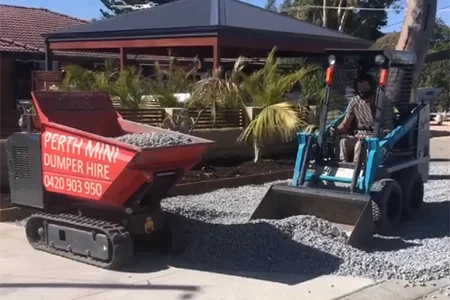

Skid steer with mini dumper
Width
920mm or 1070mm.
Height
1.825m
Tipping Height
1.835m
Operating Load
320kg
