1t Mini Excavator Hire
Hire Perth's Smallest Excavator
Our tiny 700mm wide 1t mini digger is available for wet and dry hire, meaning with or without an operator. All you need is a valid photo ID.
Dry Hire – Either pick up from our location NOR 6025, or book delivery to site at a competitive rate.
Wet Hire – All operators are qualified, experienced and insured and will work under your direction.
Kubota k008-3
Specifications
| Mini Excavator Model | K008-3 | ||
| Type of Tracks | Rubber | ||
| Operating Weight (dry) kg | 920 | ||
| Overall Length mm | 2750 |

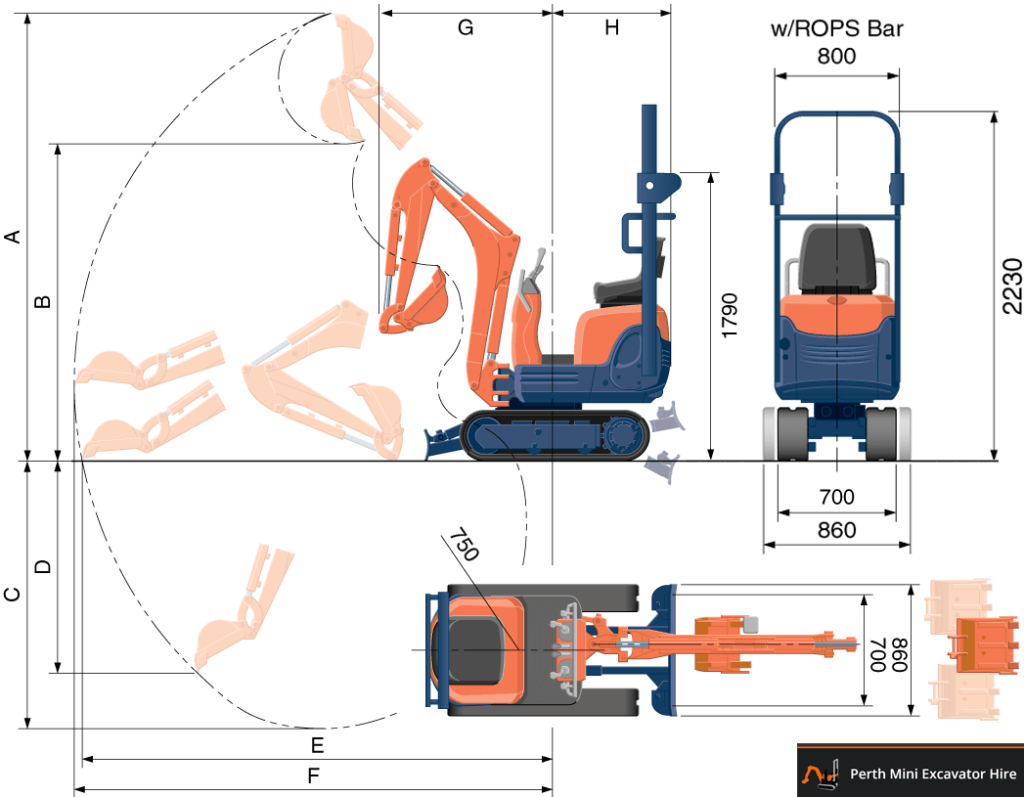

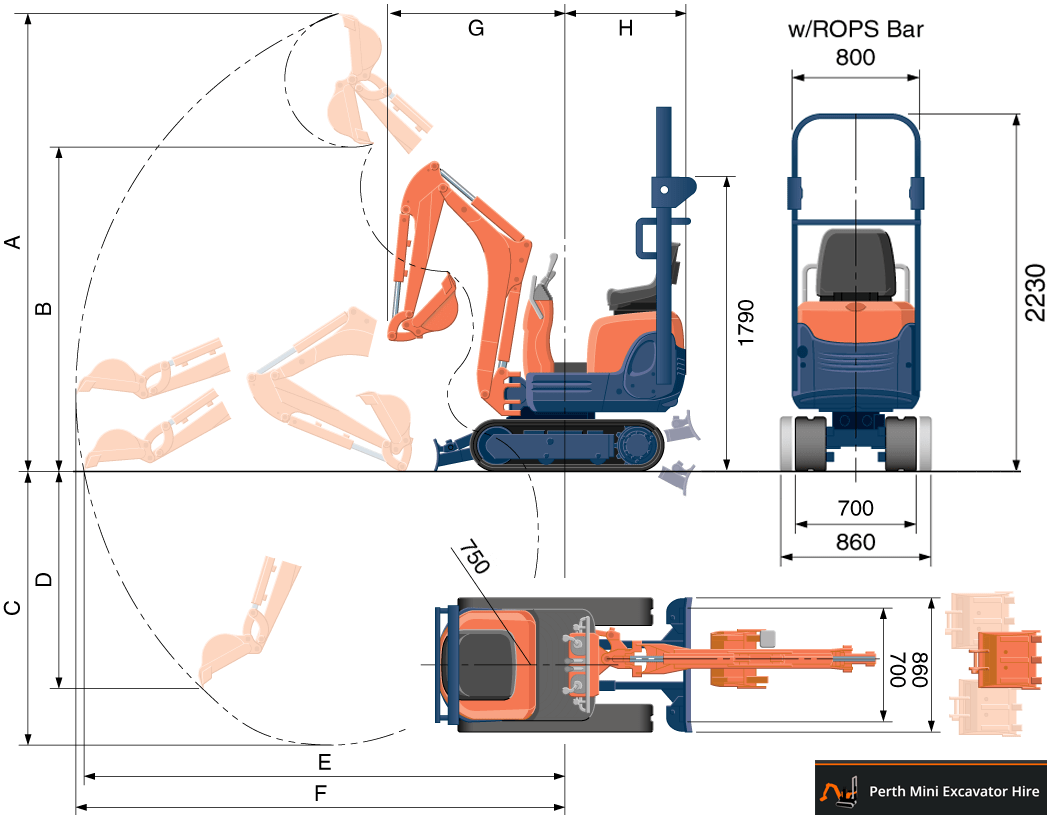

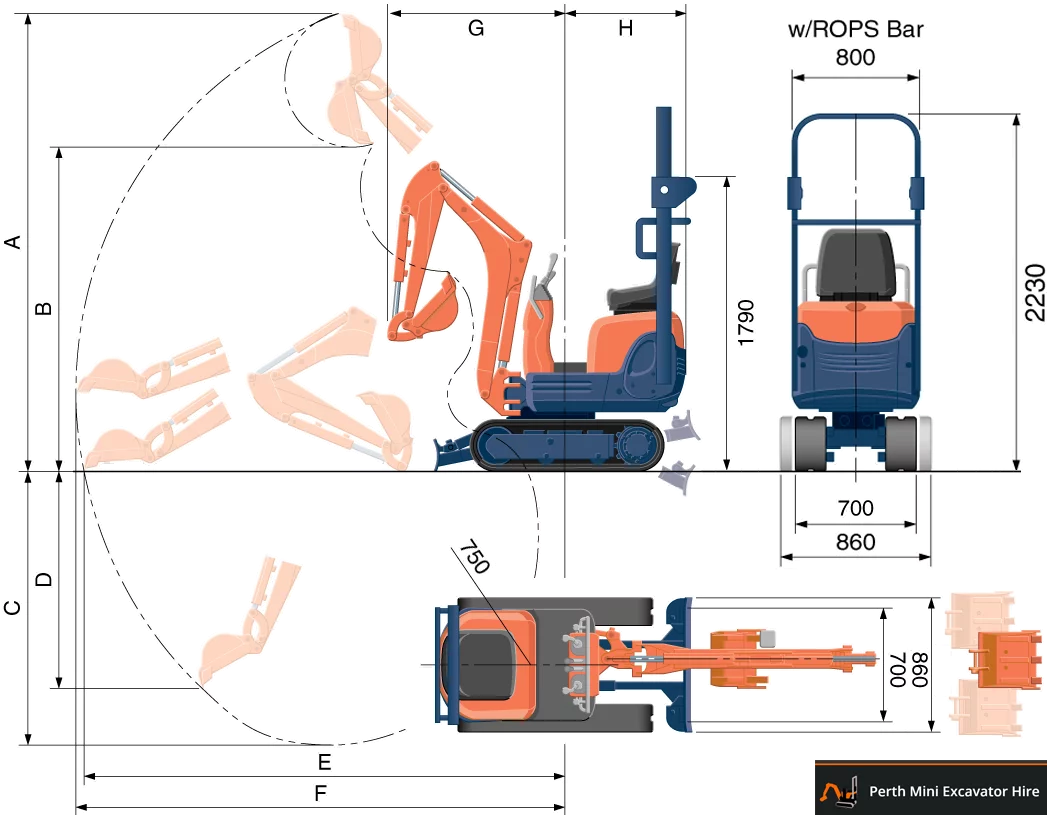

Working Range
| A | Max digging height mm | 2870 | |
| B | Max dumping height mm | 2035 | |
| C | Max digging depth mm | 1715 | |
| D | Max vertical digging depth mm | 1375 | |
| E | Max digging radius @ ground mm | 3025 | |
| F | Max digging radius mm | 3075 | |
| G | Min. turning radius | W/o swing mm | 1120 |
| With swing mm | 955 | ||
| H | Min.tail turning radius mm | 750 | |
Lifting Capacity
| Lift Point Height (m) | Lifting Capacity Over-Front Blade Down unit=ton | Lifting Capacity Over-Front Blade Up unit=ton | Lifting Capacity Over-Side unit=ton | ||||||||||
| Lift Point Radius (m) | Lift Point Radius (m) | Lift Point Radius (m) | |||||||||||
| 1.2 | 1.8 | 2.5 | MAX | 1.2 | 1.8 | 2.5 | MAX | 1.2 | 1.8 | 2.5 | MAX | ||
| GL | 1.8 | – | 0.20 | – | – | – | 0.20 | – | – | – | 0.17 | – | – |
| 1.2 | – | 0.23 | 0.21 | 0.20 | – | 0.21 | 0.13 | 0.12 | – | 0.17 | 0.10 | 0.10 | |
| 0.6 | 0.54 | 0.30 | 0.21 | 0.19 | 0.36 | 0.19 | 0.13 | 0.11 | 0.28 | 0.16 | 0.10 | 0.09 | |
| 0 | 0.55 | 0.31 | 0.19 | 0.17 | 0.32 | 0.18 | 0.12 | 0.11 | 0.25 | 0.14 | 0.10 | 0.09 | |
Dry Hire
-
Excavator
- • Tow plant braked trailer and excavator with any diesel vehicle (1650kg). Included with hire.
- • Pickup NOR 6025. Address provided on booking.
- • Steel trailer (990kg, with onboard brake controller) and Aluminium trailer (770kg, brake controller required) available with hire.
-
Excavator Delivery
- • < 25kms from 6025 - $75.00.
- • 25 - 40km's - $150.00.
- • > 40km - please call or email.
- • Pricing is for round trip and excludes gst.
Quick Hire Info
- Pick Up
- Located in Perths northern suburbs, pick up for $250.00 plus GST for 24 hrs.
- Delivery
- We can deliver the excavator to you - Yanchep to Baldivas.
- With Operator
- Hire the digger with an operator for $95.00 per hour, plus GST. Minimum 3 hr hire (2hrs working, 1hr travel).
- Attachments

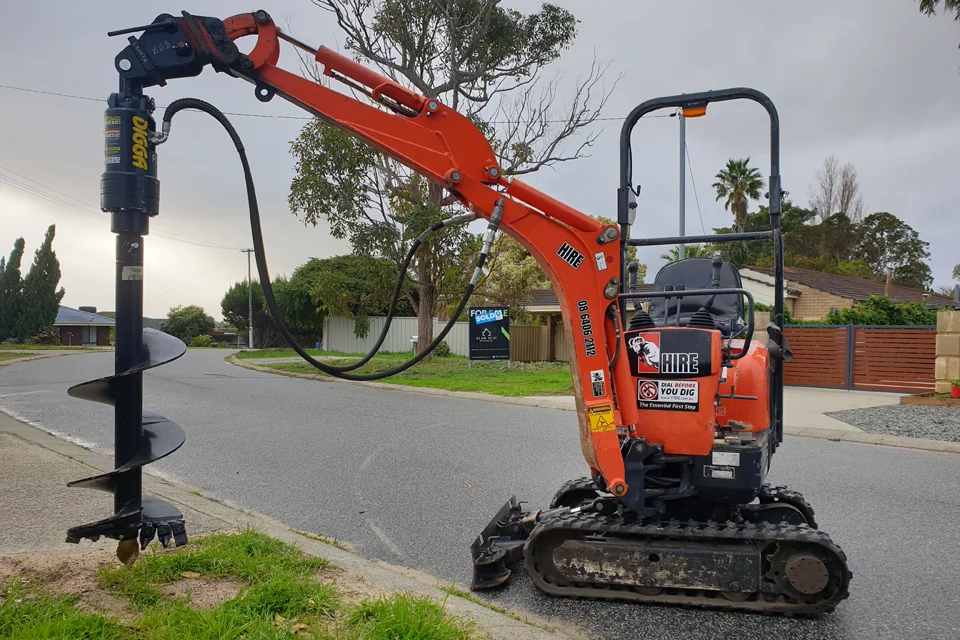

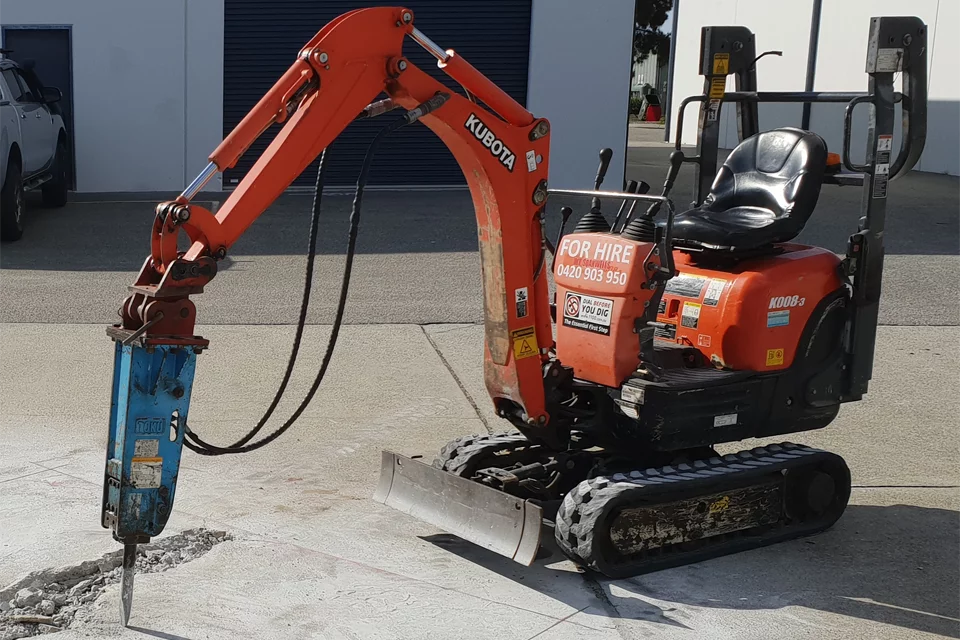

- Auger, rockbreaker, rake bucket and block lifter available.
Wet Hire
-

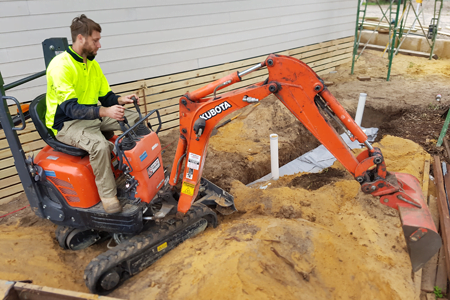

Excavator + Operator
- • Minimum hire 3hrs (1hr travel, 2hrs working).
- • Hourly rate $95.00 +gst
- • Experienced operators only.
- • Under your instruction.
-
Reliable and Safe
- • All operators have whitecard's and machine ticket.
- • Operators are covered by public liability insurance.
- • Reliability and communication is a top priority.
Quick Machine Info
- Machine Width
- 700mm tracks withdrawn, 825mm tracks extended.
- Machine Height
- Equipped with a folding rollcage, this machine is just 1.60m tall.
- Max. Digging Depth
- 1.71m
- Buckets
- 600mm mud bucket, 350mm gp bucket, 200mm trenching bucket included with hire of excavator.
